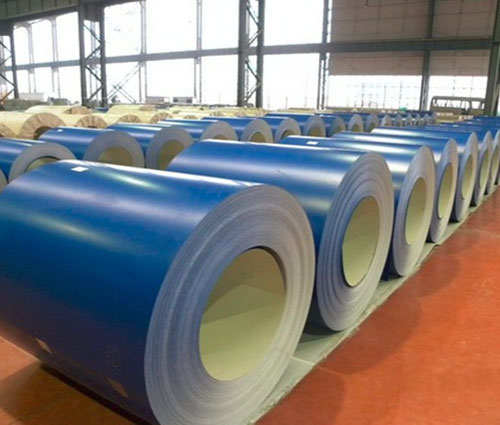

PPGI Color Painting Galvanized Steel Sheet Coil

PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.

THICKNESS: 0.23 - 1.0mm
WIDTH: 914 - 1250mm (914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm)
COIL INNER DIAMETER: 508mm
COIL WEIGHT: 2 - 7 Ton
ZINC/ZINCALUME COATING: Z50-Z275G/M2 or AZ50-AZ150 G/M2
COLOR PAINTING THICKNESS: Front Side 15 to 25 um (5 um + 12-20 um) Back Side: 7 +/- 2 um
STANDARD/GRADE: JIS G3322 CGLCC ASTM A755 CS-B
